Cookbook notebook

// PRE-REQ: you have a 'moment' (likely from our boilerplate)

// spawn a branch where you'll play the simulation forward
branch = moment.branch()
branch.wait(Time.seconds(2))

// view the events leading up to this future
print(environment.events.up_to(branch))

// PRE-REQ: you have a 'moment' and 'environment' (likely from our boilerplate)

// list all running container names
client_names = environment.containers.list({moment}).map(x => x.name)
print(client_names)

// select the container name for the container you want to run netstat in
client_name = client_names.at(0)

// spawn a branch and run the command, printing the resulting process output
branch = moment.branch()
process = bash`netstat`.run({container: client_name, branch})
print(process)

// PRE-REQ: you have a 'moment' and 'environment' (likely from our boilerplate)
// PRE-REQ: you have the host pid of the crashed process

// Rewind to a moment before the crash
pre_crash_moment = moment.rewind(Time.seconds(0.8))
branch = pre_crash_moment.branch()

// Let the host pid = 3653
hpid = 3653

// Get all pids of the target process in the namespaces it participates in
// This command is run on the host machine
print(bash`grep NSpid /proc/${hpid}/status`.run({container: environment.host, branch}))

// Output
// 82.108  NSpid:  3653    103
// The container pid is 103

// PRE-REQ: you have a 'moment' and 'environment' (likely from our boilerplate)

// grab the container you want to debug, similar to in our diagnostic command example
environment.containers.list({moment})
// container_1
// container_2
// container_3

// you want to debug container_2
chosen_container = 'container_2'

// rewind time if you're interested in debugging just before the current moment
debug_moment = moment.rewind(Time.seconds(0.8))

// if you don't know the pid of the program you want to debug, you can use a ps command to see the list of running processes
print(bash`ps aux`.run({branch: debug_moment.branch(), container: chosen_container}))

// if you know the process name
process_name = "slirp4netns"
ps_command = bash`ps --format pid --no-headers -C ${process_name} | head -n 1`.run({branch: debug_moment.branch(), container: chosen_container})

// If you have `psgrep` inside of your target container, that could be more ergonomic
ps_command = bash`pgrep ${process_name}`.run({branch: debug_moment.branch(), container: chosen_container})

// then create a variable of the pid of interest
pid_to_debug = ps_command.stdout_text

// PRE-REQ: you have a 'moment' and 'environment' (likely from our boilerplate)
// PRE-REQ: you have the host pid of the crashed process

// Rewind to a moment before the crash
pre_crash_moment = moment.rewind(Time.seconds(0.8))
branch = pre_crash_moment.branch()

// Let the host pid = 3653
hpid = 3653

// Containers are placed into distinct cgroups, so you can get the container id from the process's cgroup information
print(bash`cat /proc/${hpid}/cgroup`.run({branch, container: environment.host}))

// The output will look similar to
// 0::/machine.slice/libpod-<container-id>.scope
// The important part is: "libpod-<container-id>.scope" to get the container id

// You can also use this command to extract the container id
print(bash`grep -o 'libpod-[^.]*' /proc/${hpid}/cgroup | sed 's/libpod-//'`.run({container: environment.host, branch}))

// Inspect the container to find the image name, container name
print(bash`podman inspect <container-id>`.run({container: environment.host, branch}))

// PRE-REQ: you have a 'moment' and 'environment' (likely from our boilerplate)

// grab a container, similar to in our diagnostic command example
client_name = environment.containers.list({moment}).at(0).name

// If you're here because your target process has crashed, rewind to before the crash occurred
coredump_moment = moment.rewind(Time.seconds(0.8))

// If you don't know the process id (pid) of the program you'd like a core dump for, follow the steps in get a process id example
// Then create a variable of the pid you're interested in core_dumping.
pid_to_kill = 1234

file = environment.core_dump_by_pid({moment: coredump_moment, pid: pid_to_kill, container: client_name})

print(file)

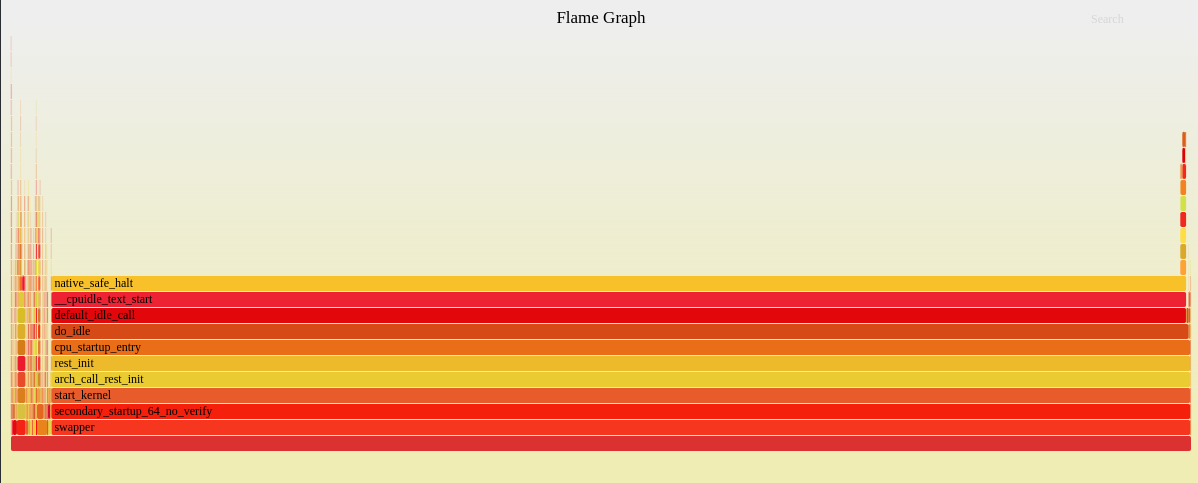

// Start the profiler on some branch
background_profiler = environment.profiler.start({branch})

// You can optionally supply a PID if you want to look at a particular process.
// background_profiler = environment.profiler.start({branch, pid: 1})

// Advance time on the branch
// Note that instead of waiting, you could run commands here.
// This is especially helpful for investigating the performance of a series of commands
branch.wait(Time.seconds(10))

// Stop the profiler on the branch
environment.profiler.stop({branch, background_profiler})

// View the results as of the end of the branch
print(environment.profiler.report({moment: branch.end}))

// PRE-REQ: you have a 'moment' and 'environment' (likely from our boilerplate)
// PRE-REQ: you have something you want to tweak that can be controlled by a container in your system under test

// define what you consider a bug as an eventset
bugs_event_set = environment.events.filter(ev => ev.output_text != null && ev.output_text.includes("FATAL"))

// check that the bug occurred in this moment's history
print(bugs_event_set.up_to(moment))

// grab a container, similar to in our diagnostic command example
feature_flag_client = environment.containers.list({moment}).at(0)?.name

// Rewind to where you want to tweak history
alternative_timeline = moment.rewind(Time.seconds(0.8)).branch()

// use your feature-flag-service (eg. StatSig) to flip a feature flag
bash`siggy gates update my-feature-flag '{ "type": "public" }'`.run({branch: alternative_timeline, container: feature_flag_client})

// wait until a bug occurs, or 10 simulated seconds pass, whichever is sooner
alternative_timeline.wait_until({until: bugs_event_set, timeout: Time.seconds(10)})

// see if the bug did occur
print(bugs_event_set.up_to(alternative_timeline))

// PRE-REQ: you have a 'moment' and a 'pid'

chosen_container = "container_2"
branch = moment.branch()

pre_moment = branch.end.rewind(1)
pre_branch = pre_moment.branch()

// Notice the `pre_branch.branch()`
// This creates a quick branch to inspect the pids without moving `pre_branch` forward
print(bash`ps aux`.run({branch: pre_branch.branch(), container: chosen_container}))

// Creates the pipe
print(bash`mkfifo /dev/gdb_pipe`.run({branch: pre_branch, container: chosen_container}))

// Keeps the pipe open
print(bash`sleep infinity > /dev/gdb_pipe`.run_in_background({branch: pre_branch, container: chosen_container}))

// Attach the pid (e.g. 36)
print(bash`gdb -p 36 < /dev/gdb_pipe`.run_in_background({branch: pre_branch, container: chosen_container}))

// Set a watchpoint
print(bash`echo "watch *(long*)<memory_address>" > /dev/gdb_pipe`.run({branch: pre_branch, container: chosen_container}))

// Set a breakpoint
print(bash`echo "b <function>" > /dev/gdb_pipe`.run({branch: pre_branch, container: chosen_container}))

// Examine a memory address
print(bash`echo "x/2wu <memory_address>" > /dev/gdb_pipe`.run({branch: pre_branch, container: chosen_container}))

print(bash`echo "c" > /dev/gdb_pipe`.run({branch: pre_branch, container: chosen_container}))

// Move the `pre_branch` forward to hit the breakpoint
pre_branch.wait({duration: Time.seconds(3)})

// you can also run a batch of gdb commands
gdbout = bash`gdb -p ${FAILING_pid.toString()} -ex "watch *(long*)<memory_address>" -ex "b <function>" -ex "x/2wu <memory_address>"`.run({ branch: pre_branch, container: chosen_container})

print(gdbout)

download(gdbout)

// PRE-REQ: you have a 'moment' and a 'pid'

chosen_container = "container_2"
branch = moment.branch()

pre_moment = branch.end.rewind(1)
pre_branch = pre_moment.branch()

// Notice the `pre_branch.branch()`
// This creates a quick branch to inspect the pids without moving `pre_branch` forward
print(bash`ps aux`.run({branch: pre_branch.branch(), container: chosen_container}))

// Creates the pipe
print(bash`mkfifo /dev/lldb_pipe`.run({branch: pre_branch, container: chosen_container}))

// Keeps the pipe open
print(bash`sleep infinity > /dev/lldb_pipe`.run_in_background({branch: pre_branch, container: chosen_container}))

// Attach to pid (e.g. 36)
print(bash`lldb -p 36 < /dev/lldb_pipe`.run_in_background({branch: pre_branch, container: chosen_container}))

// Set a watchpoint
print(bash`echo "watchpoint set expression <memory_address>" > /dev/lldb_pipe`.run({branch: pre_branch, container: chosen_container}))

//Set a breakpoint
print(bash`echo "b -n <function>" > /dev/lldb_pipe`.run({branch: pre_branch, container: chosen_container}))

//Read memory
print(bash`echo "memory read --size 2 --format x --count 2 <memory_address>" > /dev/lldb_pipe`.run({branch: pre_branch, container: chosen_container}))

print(bash`echo "continue" > /dev/lldb_pipe`.run({branch: pre_branch, container: chosen_container}))

// Move the `pre_branch` forward to hit the breakpoint
pre_branch.wait({duration: Time.seconds(3)})

// you can also run a batch of lldb commands
lldbout = bash`lldb attach -p ${failing_pid.toString()} --batch -o "watchpoint set expression <memory_address>" -o "b -n <function>" -o "memory read --size 2 --format x --count 2 <memory_address>" -o "continue"`.run({ branch: pre_branch, container: chosen_container})

print(lldbout)

download(lldbout)

// PRE-REQ: you have a 'moment' (likely a bug moment from a triage report)

// rewind and spawn a new branch starting shortly before your moment
debug_branch = moment.rewind(.3).branch()

// because bash shells are ephemeral, we need to write jdb commands to a file...
print(bash`mkfifo /dev/jdb_pipe`.run({branch: debug_branch, container: 'kafka-2'}))

// ...that's piping the output to jdb
// In this case, JDWP is enabled on port 7896
print(bash`jdb -attach 7896 < /dev/jdb_pipe`.run_in_background({branch: debug_branch, container: 'kafka-2'}))

// sleep to the pipe (keeping the pipe open)
print(bash`sleep infinity > /dev/jdb_pipe`.run_in_background({branch: debug_branch, container: 'kafka-2'}))

// set breakpoint
print(bash`echo 'catch java.lang.NullPointerException' > /dev/jdb_pipe`.run({branch:
debug_branch, container: 'kafka-2'}))

//advance time to hit the issue
debug_branch.wait({duration: Time.seconds(.5)})

//get all local variable output
print(bash`echo 'locals' > /dev/jdb_pipe`.run({branch:debug_branch, container: 'kafka-2'}))

//access Object information, field by field
print(bash`echo 'dump getDataRequest.ctx' > /dev/jdb_pipe`.run({branch:
debug_branch, container: 'kafka-2'}))

// PRE-REQ: you have a 'moment' (likely a bug moment from a triage report)

// spawn a branch where you'll play the simulation forward
branch = moment.branch()

// list all processes running in the kafka-2 container along with their pid
print(pid = bash` ps -elf`.run({
   branch: branch,
   container: 'kafka-2'
}))

// since the process we want is the container entrypoint we're using pid = 1, but you can use ps to find the relevant pid, as we do above
heap_dump_pid = 1

// This will generate a heap dump file...
bash`jcmd ${heap_dump_pid} GC.heap_dump /tmp/heap_dump.hprof`.run({branch: branch, container: 'kafka-2'})

//...which you can download
download(environment.extract_file({
    moment: branch.end,
    path: `/tmp/heap_dump.hprof`,
    container: 'kafka-2'
}));

// PRE-REQ: you have a 'moment' (likely a bug moment from a triage report)

// rewind and spawn a new branch starting shortly before your moment
delve_branch = moment.rewind(Time.seconds(2)).branch()

// create a pipe for delve input/output
print(bash`mkfifo /dev/dlv_pipe && ls -l /dev/dlv_pipe`.run({branch: delve_branch, container }))

// define the pid of the process you're debugging
delve_pid = 1

// enable delve
print((pipe = bash`dlv attach ${delve_pid} --allow-non-terminal-interactive < /dev/dlv_pipe`.run_in_background({ branch: delve_branch, container })))

// sleep to the pipe (keeping the pipe open)
bash`sleep infinity > /dev/dlv_pipe`.run_in_background({branch: delve_branch, container})

// create a breakpoint and continue
bash`echo "break bp path/to/file/file.go:406" > /dev/dlv_pipe`.run({branch: delve_branch, container })

delve_branch.wait({duration:Time.seconds(2)})

//print a stack trace
print(bash`echo "stack" > /dev/dlv_pipe`.run({branch: delve_branch, container }))

//move the current frame up
print(bash`echo "up 3" > /dev/dlv_pipe`.run({branch: delve_branch, container }))

//print local variable output
print(bash`echo "locals" > /dev/dlv_pipe`.run({branch: delve_branch, container }))
